Product Information Chart:

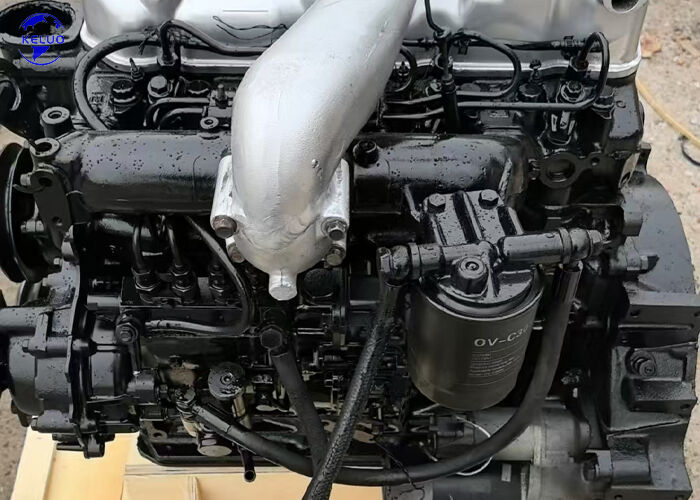

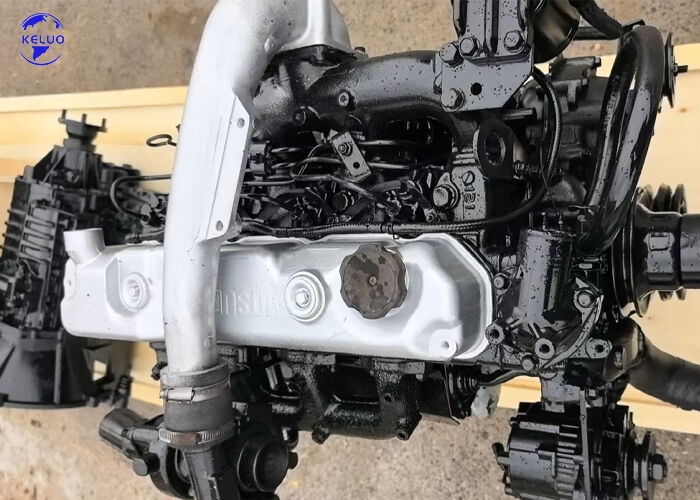

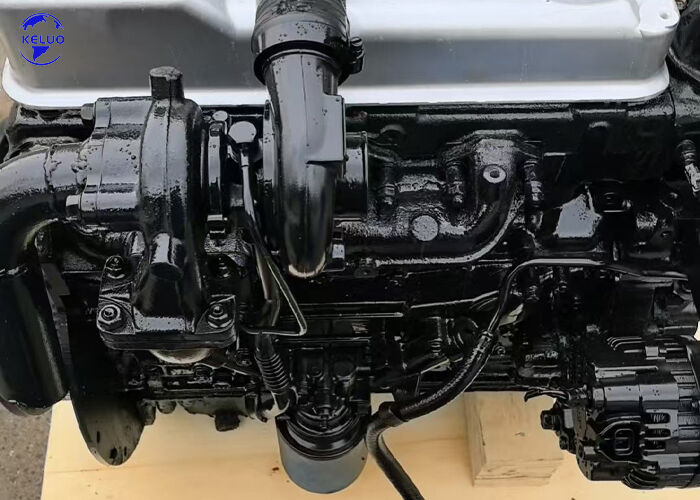

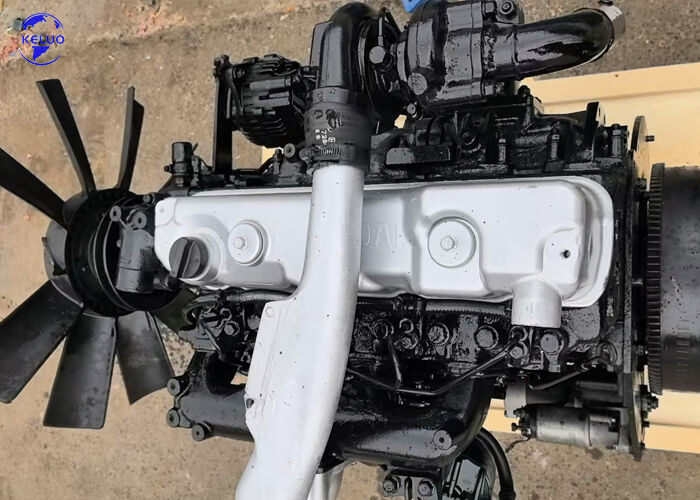

Mitsubishi Fuso Japan 4D33 Turbo Second Hand Diesel Engine Pick Up Truck
| Product Name |
Mitsubishi Fuso Japan 4D33 |
| Aspiration |
water cooling |
| Fuel Injection System |
diesel fuel |
| Emission level |
EU StagelllA/US EPA Tier3 |
| Brand |
Mitsubishi Fuso |
| Original |
Japan |
| Warranty Period |
1Year |
Characteristics in product:
The 4D33 series belongs to the Mitsubishi 4D3 family. While most 4D33s are naturally aspirated, their turbocharged version (4D33-T) offers a significant performance boost.
Specifications (4D33 Turbo)
Displacement: 4,214 cc (4.2L)
Type: Inline 4-cylinder, direct-injection diesel engine
Power Output: Approx. 120 - 140 PS (88-103 kW)
Maximum Torque: Approx. 270 - 300 Nm (depending on specific tuning)
Intake Method: Turbocharged
Lifespan: Over 500,000 km under normal maintenance
| Series Model |
ENGINE MODEL |
Displacement (L) |
Common Applications |
| Orion |
4G13, 4G15, 4G18 |
1.2L - 1.6L |
Simple and durable structure. Representative models: early Lancer, Southeast Lingshuai |
| Sirius |
4G63, 4G63T, 4G64, 4G69 |
1.6L - 2.4L |
High-performance engine. 4G63T used in Lancer Evo; 4G64/69 widely used in domestically produced SUVs. |
| Saturn |
4G32, 4G33, 4G37 |
1.2L - 1.8L |
Classic older models, mostly used in 1980s-1990s vehicles. |
| Astron |
4G52, 4G54 |
1.8L - 2.6L |
Early large-displacement inline-four engine, high torque. |
| MIVEC |
4A91, 4B11, 4B12, 4J11 |
1.3L - 2.4L |
All-aluminum cylinder block, with variable valve timing. Used in Hyundai Lancer EX and Outlander. |
| Cyclone V6 |
6G72, 6G74, 6G75 |
2.0L - 3.8L |
Classic V6 engine. Representative models: Pajero (Mountain Cat series). |
| Diesel passenger car series |
4D56, 4M40, 4M41 |
2.5L - 3.2L |
Diesel engine specifically for hardcore off-road vehicles, commonly used in pickup trucks and older Pajero models. |
2. Vehicle Type: Mitsubishi Fuso Canter In the Japanese used truck market, the 4D33 engine is primarily used in Mitsubishi Fuso Canter trucks (1.5 to 3.5 ton class). Although you mentioned "Pick-Up Truck," in Japan, these models are typically found as flatbed or double-cab trucks.
Common Models: FE507, FE517, FE637, FE70CB, etc.
Applications: Due to its ample torque, it is ideal for use as a dump truck, rescue vehicle, or agricultural pickup.
3. Precautions for Purchasing a Used Engine
When purchasing a used 4D33-T engine, please be sure to perform the following on-site or video checks:
Blow-by Inspection: After starting the engine, pull out the dipstick or open the oil cap. If a large amount of white smoke is emitted, it indicates severe piston ring wear, meaning the engine's lifespan is nearing its end.
Turbocharger Condition: Check for excessive play in the turbine shaft and oil residue on the blades (to prevent oil burning into the intake manifold).
Cooling System Marks: Check the cylinder head for scale or rust. If the cylinder head deforms due to overheating in the 4D33, repair costs are very high.
Starting Smoke Color: Blue smoke indicates oil burning, black smoke indicates a malfunction in the fuel injection system (fuel pump/nozzle), and white smoke may indicate coolant entering the combustion chamber.
Piston Pin Bushing: This is a common potential weakness in the 4D33. Listen carefully for any abnormal knocking sounds.
4. Maintenance and Installation Recommendations
Oil Requirements: SAE 15W-40 diesel engine oil (6.2-6.5 liters) is recommended.
Cooling Upgrade: If upgrading from a non-turbo version to a turbo version, be sure to upgrade the radiator (water tank). The high heat generated by the turbocharger requires stronger cooling capabilities.
Compatibility: Ensure the flywheel housing and clutch are compatible with your manual transmission (usually the M035 series).
Our Advantages:
Company Profile:
Hebei Keluo provides second-hand original 4BT, 6BT, 6CT, QD32, 6D16, 4D33, D4E, D6E, BF6M2012, BF4M2012, WD615.47, WP10 etc,.
Brand: Cummins, Deutz, Weichai, Perkins, CAT, Yanmar, deutz, Isuzu, Yuchai
We have enough resource,more than 100 different models.
In this season,all of machine are in big sales promotions.
Hebei Keluo pursues to deliver good-quality second-hand engines to the people in need, so that people all over the world can buy the most suitable products with the least amount of money.
Welcome your inquiry and consult.
FAQ:
Q: What is your delivery time?
A: The delivery time is within 15 working days.
Q: What is the payment term?
A: Normally we accept 30% deposit by TT for production, 70% balance by TT before shipping.
Q: What color can I choose?
A: We can customize the color according to your color number.
Q: Can I see the production progress after order?
A: Yes, during production, we can make video call and we could take photos/videos for your reference.
Q: What kind of service can I get from you if I buy? How can I get parts?
A: We have 1 year warranty for each machine.Within 1 year warranty, if any parts failure caused by quality issues, the new parts would be sent to you free of charge within 5 working days. We have professional after sales department to support for you at any time.
